Zeus

Ideal locomotive for city and tourist transport: its appearance enhances tourist destinations, theme parks and tourist resorts.

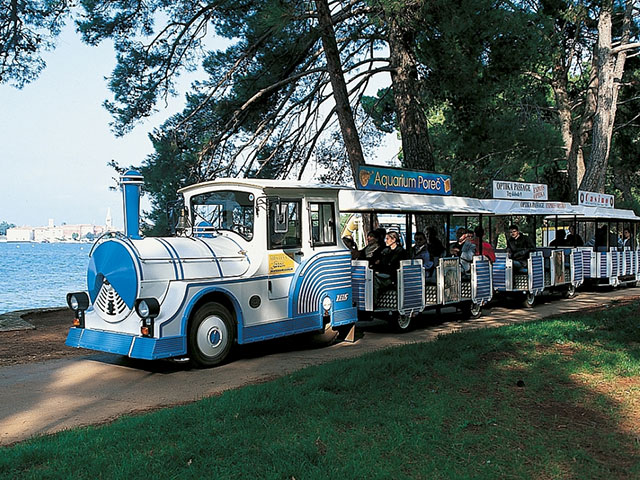

  • Zeus - Porec, Croatia
    Zeus - Porec, Croatia

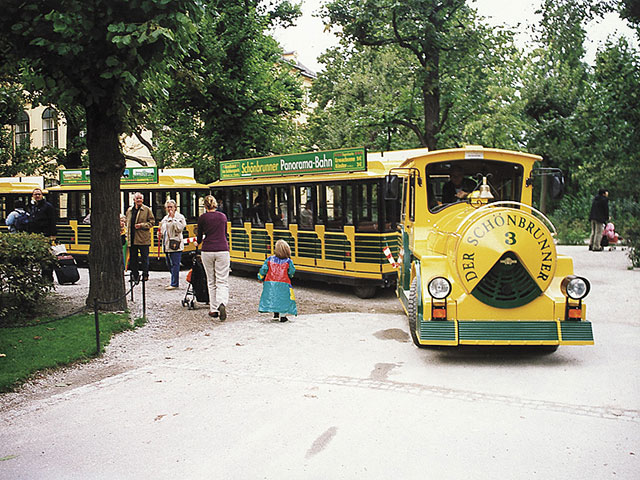

  • Zeus - Vienna, Austria
    Zeus - Vienna, Austria

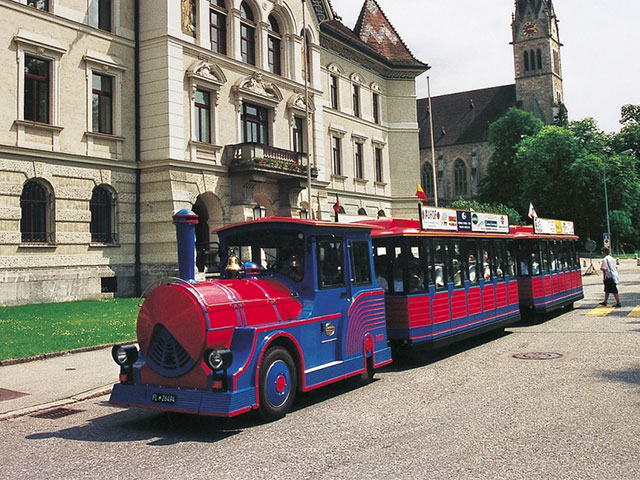

  • Zeus - Vaduz, Liechtenstein
    Zeus - Vaduz, Liechtenstein
Available while stocks last

Length
3920 mm

Width
1710 mm

Height
2240 mm

CHASSIS
Heavy duty rigid steel sectional structure.

BODY
Fibreglass reinforced plastic body with integrated coloured gelcoat. The cabin has a comprehensive console and is equipped with 1 comfortable, upholstered and fully adjustable seats.

ENGINE
PERKINS, 4-cylinder, diesel, displacement 4.400 cc, 82 HP(SAE) at 2,200 rpm, maximum torque 292 Nm at 1,400 rpm.

GEARBOX
24-speed mechanical gearbox plus 12 reverse gears.

TRANSMISSION
4-wheel drive integrated mechanical transmission. Central and rear differential locking.

BRAKES
Pneumohydraulic disk brakes with oil bath lubrication on both axles, negative pneumatic handbrake. Pneumatic circuit for coach braking.

SUSPENSION
Optional – pneumatic on the cabin, with hydraulic shock absorbers.

STEERING
Hydraulic power assisted.



Doors (*)
Bell
Flashing light (*)
Complete sound system with CD player, MP3, USB and microphone
Multilingual system
Video broadcast system with DVD in the cabin and a monitor in the coaches
CCTV system
Normal pneumatic seat
Heating
CAN BUS system for control of electric system
Advertising panel
Folding advertisement panel
Iron frame for advertising board
Opening air-roof
Lighting around the sides of the Roof
Lighting on the front of the locomotive
Clear Paint (Colour protection recommended for strong colours)

(*) = Recommended / Required in compliance with laws in force in each country
Dimensions
Available while stocks last

Length
3920 mm

Width
1710 mm

Height
2240 mm
Fact sheet

CHASSIS
Heavy duty rigid steel sectional structure.

BODY
Fibreglass reinforced plastic body with integrated coloured gelcoat. The cabin has a comprehensive console and is equipped with 1 comfortable, upholstered and fully adjustable seats.

ENGINE
PERKINS, 4-cylinder, diesel, displacement 4.400 cc, 82 HP(SAE) at 2,200 rpm, maximum torque 292 Nm at 1,400 rpm.

GEARBOX
24-speed mechanical gearbox plus 12 reverse gears.

TRANSMISSION
4-wheel drive integrated mechanical transmission. Central and rear differential locking.

BRAKES
Pneumohydraulic disk brakes with oil bath lubrication on both axles, negative pneumatic handbrake. Pneumatic circuit for coach braking.

SUSPENSION
Optional – pneumatic on the cabin, with hydraulic shock absorbers.

STEERING
Hydraulic power assisted.



Optionals
Doors (*)
Bell
Flashing light (*)
Complete sound system with CD player, MP3, USB and microphone
Multilingual system
Video broadcast system with DVD in the cabin and a monitor in the coaches
CCTV system
Normal pneumatic seat
Heating
CAN BUS system for control of electric system
Advertising panel
Folding advertisement panel
Iron frame for advertising board
Opening air-roof
Lighting around the sides of the Roof
Lighting on the front of the locomotive
Clear Paint (Colour protection recommended for strong colours)

(*) = Recommended / Required in compliance with laws in force in each country
Compatible with:
  • A 98

  • A 98S

  • A 91

  • A 91S

  • A 94

  • A 94S

  • A 86

  • C 93

  • C 94

  • C 98



Compatible with:
  • A 98

  • A 98S

  • A 91

  • A 91S

  • A 94

  • A 94S

  • A 86

  • C 93

  • C 94

  • C 98
