A 86

Ideal coach for transporting passengers through narrow streets in old towns, with the possibility of dedicated access for the disabled. Capacity of up to 18 adults.

  • Carrozza A 86 - Kos, Greece
    Carrozza A 86 - Kos, Greece
  • Carrozza A 86 - Bermuda
    Carrozza A 86 - Bermuda
  • Carrozza A 86 - Bermuda
    Carrozza A 86 - Bermuda

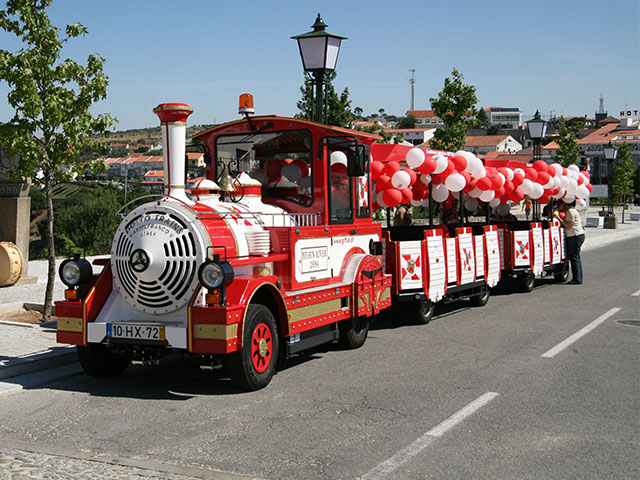

  • Carrozza A 86 - Miranda do Douro
    Carrozza A 86 - Miranda do Douro

Length
4000 mm

Width
1600 mm

Height
2250 mm

CHASSIS
In reinforced galvanised steel section.

BODY
In reinforced fibreglass and colours incorporated in gelcoat.

FLOOR
Floor in aluminium non-slip tread plate.

SEATING
Foam rubber padded.

CAPACITY
18 adults or 24 children. If fitted with a pneumatic disabled access platform lift: 17 adults or 17 + 1 wheelchair. (Capacity may vary according to the fittings and the applicable approval regulations in each country).

BRAKES
Pneumohydraulic disk brakes on all 4 wheels, emergency brake and handbrake approved in compliance with applicable regulations in force in each country.

SUSPENSION
Transverse spring suspension with hydraulic shock absorbers.

STEERING
4-wheel steering system allowing all coaches to closely follow the engine’s path.

Rotary light (usually installed in the last wagon) (*)
Speaker
Stop button (*)
TUV alarm button
100-watt internal light
Electric door contacts (signalling any open doors)
Opening doors on one side and fixed doors on the other side (*)
Opening doors on both sides (when allowed)
Chain closure on both sides (when allowed)
Chain closure on one side and fixed doors on the other (when allowed)
Closures with PVC raincovers
Air repair glasses
Front and/or back glass for open coach
Combined closure with PVC covers and glass
Standard foam padded seats (skai fabric, available in black, brown and blue jeans) (**)
Wooden seats
Fibreglass seats
Transparent roof
Lighting around the sides of the roof
Pneumatic disabled access platform lift
Central advertising panel on coach roof

Side advertising panels on coach roof
Folding advertisement panel for carriage

Iron frame for advertising panel (without white board)
Advertising stickers
Ski holder / Pushchair holder
Side footboard for passengers boarding
Raised height carriage (bayonets raised by 20/40 cm)
Clear Paint for coaches (Colour protection recommended for strong colours)

(*) = Recommended / Required in compliance with laws in force in each country
(**) = Series

Dimensions

Length
4000 mm

Width
1600 mm

Height
2250 mm

Fact sheet

CHASSIS
In reinforced galvanised steel section.

BODY
In reinforced fibreglass and colours incorporated in gelcoat.

FLOOR
Floor in aluminium non-slip tread plate.

SEATING
Foam rubber padded.

CAPACITY
18 adults or 24 children. If fitted with a pneumatic disabled access platform lift: 17 adults or 17 + 1 wheelchair. (Capacity may vary according to the fittings and the applicable approval regulations in each country).

BRAKES
Pneumohydraulic disk brakes on all 4 wheels, emergency brake and handbrake approved in compliance with applicable regulations in force in each country.

SUSPENSION
Transverse spring suspension with hydraulic shock absorbers.

STEERING
4-wheel steering system allowing all coaches to closely follow the engine’s path.

Optionals

Rotary light (usually installed in the last wagon) (*)
Speaker
Stop button (*)
TUV alarm button
100-watt internal light
Electric door contacts (signalling any open doors)
Opening doors on one side and fixed doors on the other side (*)
Opening doors on both sides (when allowed)
Chain closure on both sides (when allowed)
Chain closure on one side and fixed doors on the other (when allowed)
Closures with PVC raincovers
Air repair glasses
Front and/or back glass for open coach
Combined closure with PVC covers and glass
Standard foam padded seats (skai fabric, available in black, brown and blue jeans) (**)
Wooden seats
Fibreglass seats
Transparent roof
Lighting around the sides of the roof
Pneumatic disabled access platform lift
Central advertising panel on coach roof

Side advertising panels on coach roof
Folding advertisement panel for carriage

Iron frame for advertising panel (without white board)
Advertising stickers
Ski holder / Pushchair holder
Side footboard for passengers boarding
Raised height carriage (bayonets raised by 20/40 cm)
Clear Paint for coaches (Colour protection recommended for strong colours)

(*) = Recommended / Required in compliance with laws in force in each country
(**) = Series

Compatible with:
  • IVO22

  • Big Boy 4x4

  • Muson River 2x4

  • Muson River Electric

  • P90 2011



Compatible with:
  • IVO22

  • Big Boy 4x4

  • Muson River 2x4

  • Muson River Electric

  • P90 2011
